隐藏界面操作

<< Click to Display Table of Contents >>

当前位置:  部署与集成

隐藏界面操作

复制链接

1.概述

用户在将BI产品集成到自己的系统中时,经常会有需要根据实际需要隐藏相关操作的场合,产品支持用户通过自定义css文件、配置属性、配置URL参数控制界面上数据源、数据集和报告相关操作的隐藏、显示。

2.自定义CSS

自定义CSS文件隐藏功能步骤:先获取data-locator信息,然后定义css文件,在bi.properties中添加属性external.resources=XXX.css(XXX为css文件名称),其次重启BI,最后进入产品对应界面,确认功能隐藏。

2.1举例

当用户想要隐藏制作报告左侧资源树上方的更多/刷新和报告中的第一个分隔线(分隔线包括横向和竖向)。

1)在产品安装路径/bihome路径新建css文件,在下文中找到操作的data-locator放入css文件,并设置该操作的display:none !important;。

css文件中内容写法如下:

[data-locator=db-editor] [data-locator=menu-rep-tree] [data-locator=action-refresh]

        display:none !important;

}

[data-locator=action-separator-0]

{

        display:none !important;

}

2)在bi.properties中添加属性external.resources=XXX.css(XXX为css文件名称),然后重启。

HiddenAction

3)打开制作报告页面对应区域已隐藏,隐藏前后对比图如下。

Set_db_data_locator_eg

2.2data-locator

数据源界面的data-locator

[data-locator=conn-editor] [data-locator=conn_tree] [data-locator=action-newConn]       左侧资源树上方的新建

[data-locator=conn-editor] [data-locator=conn_tree] [data-locator= tree] [data-locator= searchInput]      左侧资源树上方的搜索栏

[data-locator=conn-editor] [data-locator=conn_tree] [data-locator=tree] [data-locator=toolButton]      左侧资源树上方的驱动管理

[data-locator=conn-editor] [data-locator=conn_tree] [data-locator=tree] [data-locator=moreButton] [data-locator=action-tree-more]      左侧资源树上方的更多

[data-locator=conn-editor] [data-locator=menu] [data-locator=action-add-folder]      左侧资源树上方的更多/新建文件夹

[data-locator=conn-editor] [data-locator=menu] [data-locator=action-paste-to-root]      左侧资源树上方的更多/粘贴

[data-locator=conn-editor] [data-locator=menu] [data-locator=action-refresh]      左侧资源树上方的更多/刷新

Db_3

[data-locator=conn-editor] [data-locator=conn_tree] [data-locator=tree] [data-locator=action-common-search]       数据源/搜索

[data-locator=conn-editor] [data-locator=conn_tree] [data-locator=tree] [data-locator=action-common-tree-more]       数据源/更多

[data-locator=conn-editor] [data-locator=menu] [data-locator=action-open]       数据源/打开数据源

[data-locator=conn-editor] [data-locator=menu] [data-locator=action-rename]       数据源/重命名

[data-locator=conn-editor] [data-locator=menu] [data-locator=action-copy]       数据源/复制

[data-locator=conn-editor] [data-locator=menu] [data-locator=action-move]       数据源/移动到…

[data-locator=conn-editor] [data-locator=menu] [data-locator=action-paste]       数据源/粘贴

[data-locator=conn-editor] [data-locator=menu] [data-locator=action-remove]       数据源/删除

[data-locator=conn-editor] [data-locator=menu] [data-locator=action-refreshConn]       数据源/刷新数据

[data-locator=conn-editor] [data-locator=menu] [data-locator=action-newQuery]       数据源/新建数据集

Db_0

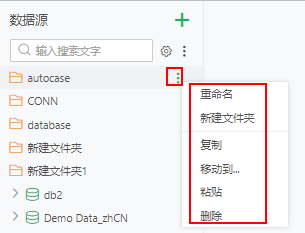

[data-locator=conn-editor] [data-locator=conn_tree] [data-locator=tree] [data-locator=action-common-tree-more]       文件夹/更多

[data-locator=conn-editor] [data-locator=menu] [data-locator=action-rename]       文件夹/重命名

[data-locator=conn-editor] [data-locator=menu] [data-locator=action-add-folder]       文件夹/新建文件夹

[data-locator=conn-editor] [data-locator=menu] [data-locator=action-copy]       文件夹/复制

[data-locator=conn-editor] [data-locator=menu] [data-locator=action-paste]       文件夹/粘贴

[data-locator=conn-editor] [data-locator=menu] [data-locator=action-move]       文件夹/移动到…

[data-locator=conn-editor] [data-locator=menu] [data-locator=action-remove]       文件夹/删除

Db_1

[data-locator=conn-editor] [data-locator=conn_tree] [data-locator=tree] [data-locator=action-common-tree-more]       表/更多

[data-locator=conn-editor] [data-locator=menu] [data-locator=action-addTable]       表/新建表…

[data-locator=conn-editor] [data-locator=menu] [data-locator=action-refreshConn]       表/刷新数据

Db_6

[data-locator=conn-editor] [data-locator=conn_tree] [data-locator=tree] [data-locator=action-common-detaildata]       表名/预览数据

[data-locator=conn-editor] [data-locator=conn_tree] [data-locator=tree] [data-locator=action-common-tree-more]       表名/更多

[data-locator=conn-editor] [data-locator=menu] [data-locator=action-addTable]       表名/新建表…

[data-locator=conn-editor] [data-locator=menu] [data-locator=action-removeTable]       表名/删除表

[data-locator=conn-editor] [data-locator=menu] [data-locator=action-refreshConn]       表名/刷新数据

[data-locator=conn-editor] [data-locator=menu] [data-locator=action-newDB]       表名/新建报告

Db_8

[data-locator=conn-editor] [data-locator=conn_tree] [data-locator=tree] [data-locator=action-common-tree-more]       视图/更多

[data-locator=conn-editor] [data-locator=menu] [data-locator=action-refreshConn]       视图/刷新数据

Db_9

[data-locator=conn-editor] [data-locator=g-toolbar] [data-locator=action-editParamQry]       数据库配置信息上方/编辑参数

[data-locator=conn-editor] [data-locator=g-toolbar] [data-locator=action-refreshParamQry]       数据库配置信息上方/刷新参数

[data-locator=conn-editor] [data-locator=g-toolbar] [data-locator=action-settingQry]      数据库配置信息上方/设置

[data-locator=conn-editor] [data-locator=g-toolbar] [data-locator=action-createQry]       数据库配置信息上方/新建数据集

[data-locator=conn-editor] [data-locator=g-toolbar] [data-locator=action-testConn]        数据库配置信息上方/测试连接

[data-locator=conn-editor] [data-locator=g-toolbar] [data-locator=action-saveConn]       数据库配置信息上方/保存

[data-locator=conn-editor] [data-locator=g-toolbar] [data-locator=action-saveAsConnection]       数据库配置信息上方/另存为

Db_5

数据集界面的data-locator:

[data-locator=qry-editor] [data-locator=conn_tree] [data-locator=action-newQuery]         左侧资源树上方的新建

[data-locator=qry-editor] [data-locator=conn_tree] [data-locator=tree] [data-locator=searchInput]      左侧资源树上方的搜索栏

[data-locator=qry-editor] [data-locator=conn_tree] [data-locator=tree] [data-locator=toolButton]      左侧资源树上方的数据脱敏

[data-locator=qry-editor] [data-locator=conn_tree] [data-locator=tree] [data-locator=moreButton] [data-locator=action-tree-more]      左侧资源树上方的更多

[data-locator=qry-editor] [data-locator=menu] [data-locator=action-add-folder]      左侧资源树上方的更多/新建文件夹

[data-locator=qry-editor] [data-locator=menu] [data-locator=action-openLineageAnalyze]      左侧资源树上方的更多/打开查看血缘

[data-locator=qry-editor] [data-locator=menu] [data-locator=action-paste-to-root]      左侧资源树上方的更多/粘贴

[data-locator=qry-editor] [data-locator=menu] [data-locator=action-refresh]      左侧资源树上方的更多/刷新

Query_0

[data-locator=qry-editor] [data-locator=conn_tree] [data-locator=tree] [data-locator=action-common-tree-more]       文件夹/更多

[data-locator=qry-editor] [data-locator=menu] [data-locator=action-rename]       文件夹/重命名

[data-locator=qry-editor] [data-locator=menu] [data-locator=action-add-folder]       文件夹/新建文件夹

[data-locator=qry-editor] [data-locator=menu] [data-locator=action-copy]       文件夹/复制

[data-locator=qry-editor] [data-locator=menu] [data-locator=action-move]       文件夹/移动到…

[data-locator=qry-editor] [data-locator=menu] [data-locator=action-paste]       文件夹/粘贴

[data-locator=qry-editor] [data-locator=menu] [data-locator=action-remove]       文件夹/删除

Query_3

[data-locator=qry-editor] [data-locator=conn_tree] [data-locator=tree] [data-locator=action-common-detaildata]       数据集/数据详情

[data-locator=qry-editor] [data-locator=conn_tree] [data-locator=tree] [data-locator=action-common-tree-more]       数据集/更多

[data-locator=qry-editor] [data-locator=menu] [data-locator=action-open]       数据集/打开数据集

[data-locator=qry-editor] [data-locator=menu] [data-locator=action-rename]       数据集/重命名

[data-locator=qry-editor] [data-locator=menu] [data-locator=action-openLineageAnalyze]       数据集/查看血缘

[data-locator=qry-editor] [data-locator=menu] [data-locator=action-downloadQryItem]       数据集/下载…

[data-locator=qry-editor] [data-locator=menu] [data-locator=action-copy]       数据集/复制

[data-locator=qry-editor] [data-locator=menu] [data-locator=action-move]       数据集/移动到…

[data-locator=qry-editor] [data-locator=menu] [data-locator=action-paste]       数据集/粘贴

[data-locator=qry-editor] [data-locator=menu] [data-locator=action-remove]       数据集/删除

[data-locator=qry-editor] [data-locator=menu] [data-locator=action-newDB]       数据集/新建报告

Query_5

[data-locator=qry-editor] [data-locator=g-toolbar] [data-locator=action-editParamQry]       数据集信息上方/编辑参数

[data-locator=qry-editor] [data-locator=g-toolbar] [data-locator=action-refreshParamQry]       数据集信息上方/刷新参数

[data-locator=qry-editor] [data-locator=g-toolbar] [data-locator=action-settingQry]  数据集信息上方/设置

[data-locator=qry-editor] [data-locator=g-toolbar] [data-locator=action-perfQry]       数据集信息上方/检测性能

[data-locator=qry-editor] [data-locator=g-toolbar] [data-locator=action-downloadQry]       数据集信息上方/下载

[data-locator=qry-editor] [data-locator=g-toolbar] [data-locator=action-createDB]       数据集信息上方/新建报告

[data-locator=qry-editor] [data-locator=g-toolbar] [data-locator=action-saveQry]       数据集信息上方/保存

[data-locator=qry-editor] [data-locator=g-toolbar] [data-locator=action-saveAsQry]       数据集信息上方/另存为

[data-locator=qry-editor] [data-locator=g-toolbar]       数据集信息上方/分隔横线

[data-locator=qry-editor] [data-locator=export_more_button]       打开数据集/更多

[data-locator=qry-editor] [data-locator=menu] [data-locator=action-export_query_data]       打开数据集/导出到数据库

 [data-locator=qry-editor] [data-locator=menu] [data-locator=action-export_query_data_csv] 打开数据集/导出为CSV文件

[data-locator=qry-editor] [data-locator=menu] [data-locator=action-export_query_data_excel] 打开数据集/导出为Excel文件

[data-locator=qry-editor] [data-locator=export_query_data]       打开数据集/抽取数据

[data-locator=qry-editor] [data-locator=export_query_data]       打开数据集/禁止下载

Query_2

制作报告界面的data-locator

[data-locator=db-editor] [data-locator=action-newDB]  左侧资源树上方的新建

[data-locator=db-editor] [data-locator=menu] [data-locator=action-createAnalysisDB] 左侧资源树上方的新建分析报告

[data-locator=db-editor] [data-locator=menu] [data-locator=action-createVividDB] 左侧资源树上方的新建大屏报告

[data-locator=db-editor] [data-locator=menu] [data-locator=action-createAdHocDB] 左侧资源树上方的新建即席分析

[data-locator=db-editor] [data-locator=menu] [data-locator=action-createCombinedDB]左侧资源树上方的新建组合报告

[data-locator=db-editor] [data-locator=tree-rep-tree] [data-locator=searchInput] 左侧资源树上方的搜索

[data-locator=db-editor] [data-locator=tree-rep-tree] [data-locator=moreButton] [data-locator=action-tree-more]  左侧资源树上方的更多

[data-locator=db-editor] [data-locator=tree-rep-tree] [data-locator=action-add-folder]      左侧资源树上方的更多/新建文件夹

[data-locator=db-editor] [data-locator=tree-rep-tree] [data-locator=action-multi-share]       左侧资源树上方的更多/批量分享

[data-locator=db-editor] [data-locator=tree-rep-tree] [data-locator=action-lineage-analyze]      左侧资源树上方的更多/查看血缘

[data-locator=db-editor] [data-locator=tree-rep-tree] [data-locator=action-paste-to-root] 左侧资源树上方的更多/粘贴

[data-locator=action-separator-N]  分隔横线,N从0开始,表示第一个

说明:

报告中分隔竖线和分隔横线使用的是同一个data-locator。

[data-locator=db-editor] [data-locator=menu-rep-tree] [data-locator=action-refresh]      左侧资源树上方的更多/刷新

DB_More

[data-locator=db-editor] [data-locator=tree-rep-tree] [data-locator=cancel-all-attentions]  收藏/取消全部收藏

DB_cancel_favorite

[data-locator=db-editor] [data-locator=tree-rep-tree] [data-locator=action-topping] 收藏报告/置顶

DB__top

[data-locator=db-editor] [data-locator=tree-rep-tree] [data-locator=action-cancel] 收藏报告/取消置顶

DB_cancel_top

[data-locator=db-editor] [data-locator=tree-rep-tree] [data-locator=action-commontree-more]   文件夹/更多

[data-locator=db-editor] [data-locator=tree-rep-tree] [data-locator=action-rename]  文件夹/重命名

[data-locator=db-editor] [data-locator=tree-rep-tree] [data-locator=action-add-folder]  文件夹/新建文件夹

[data-locator=action-separator-N]  分隔横线,N从0开始,表示第一个

说明:

报告中分隔竖线和分隔横线使用的是同一个data-locator。

[data-locator=db-editor] [data-locator=menu-rep-tree] [data-locator=action-copy]  文件夹/复制

[data-locator=db-editor] [data-locator=tree-rep-tree] [data-locator=action-move]  文件夹/移动到

[data-locator=db-editor] [data-locator=tree-rep-tree] [data-locator=action-paste]  文件夹/粘贴

[data-locator=db-editor] [data-locator=tree-rep-tree] [data-locator=action-remove] 文件夹/删除

DB_folder

[data-locator=db-editor] [data-locator=tree-rep-tree] [data-locator=action-common-tree-more]   报告/更多

[data-locator=db-editor] [data-locator=tree-rep-tree] [data-locator=action-open]  报告/打开报告

[data-locator=db-editor] [data-locator=tree-rep-tree] [data-locator=action-add-to-my-db]  报告/收藏

[data-locator=db-editor] [data-locator=tree-rep-tree] [data-locator=action-cancel]  报告/取消收藏

[data-locator=db-editor] [data-locator=tree-rep-tree] [data-locator=action-share]  报告/分享

[data-locator=db-editor] [data-locator=tree-rep-tree] [data-locator=action-lineage-analyze]  报告/查看血缘

[data-locator=db-editor] [data-locator=tree-rep-tree] [data-locator=action-download]  报告/下载

[data-locator=db-editor] [data-locator=tree-rep-tree] [data-locator=action-export-template] 报告/导出为模板

[data-locator=action-separator-N]  分隔横线,N从0开始,表示第一个

说明:

报告中分隔竖线和分隔横线使用的是同一个data-locator。

[data-locator=db-editor] [data-locator=menu-rep-tree] [data-locator=action-copy] 报告/复制

[data-locator=db-editor] [data-locator=tree-rep-tree] [data-locator=action-move] 报告/移动到

[data-locator=db-editor] [data-locator=tree-rep-tree] [data-locator=action-paste]  报告/粘贴

[data-locator=db-editor] [data-locator=tree-rep-tree] [data-locator=action-remove]  报告/删除

DB_DB

[data-locator=db-editor] [data-locator=action-depth-to-top] 组件/到顶部

[data-locator=db-editor] [data-locator=action-depth-to-bottom] 组件/到底部

[data-locator=db-editor] [data-locator=action-depth-shift-up] 组件/上移一层

[data-locator=db-editor] [data-locator=action-depth-shift-down] 组件/下移一层

[data-locator=db-editor] [data-locator=tree-elem-tree] [data-locator=searchInput] 组件/搜索

[data-locator=db-editor] [data-locator=tree-elem-tree] [data-locator=action-icon-unlock] 组件/ 解锁切换为锁定

[data-locator=db-editor] [data-locator=tree-elem-tree] [data-locator=action-icon-lock]  组件/ 锁定切换为解锁

[data-locator=db-editor] [data-locator=tree-elem-tree]  [data-locator=action-common-open_eye]  组件/可见切换为不可见

[data-locator=db-editor] [data-locator=tree-elem-tree]  [data-locator=action-common-close_eye]  组件层级/不可见切换为可见

[data-locator=db-editor] [data-locator=tree-elem-tree]  [data-locator=action-common-tree-more]组件/更多

[data-locator=db-editor] [data-locator=menu-elem-tree] [data-locator=action-rename] 组件/重命名

[data-locator=db-editor] [data-locator=menu-elem-tree] [data-locator=action-remove] 组件/删除

[data-locator=db-editor] [data-locator=menu-elem-tree] [data-locator=action-merge-group-elem]  组件/多个组件组合

[data-locator=db-editor] [data-locator=menu-elem-tree] [data-locator=action-cancel-merge-group]  组件/多个组件取消组合

DB_component

制作报告顶部工具栏

[data-locator=db-editor] [data-locator=g-toolbar] [data-locator=action-prev]  撤销

[data-locator=db-editor] [data-locator=g-toolbar] [data-locator=action-next]  重做

[data-locator=action-separator-N]  分隔竖线,N从0开始,表示第一个

说明:

报告中分隔竖线和分隔横线使用的是同一个data-locator。

[data-locator=db-editor] [data-locator=menu] [data-locator=action-replaceQuery]  替换数据集

[data-locator=db-editor] [data-locator=g-toolbar] [data-locator=action-parameter]  参数

[data-locator=db-editor] [data-locator=menu] [data-locator=action--1]  编辑参数

[data-locator=db-editor] [data-locator=menu] [data-locator=action-refreshParam]  刷新参数

[data-locator=db-editor] [data-locator=menu] [data-locator=action-137]  组件传参/填报设置

[data-locator=db-editor] [data-locator=g-toolbar] [data-locator=action-form]  填报

[data-locator=db-editor] [data-locator=menu] [data-locator=action-form]  填报字段

[data-locator=db-editor] [data-locator=g-toolbar] [data-locator=action-perf]  性能帮助

[data-locator=db-editor] [data-locator=menu] [data-locator=action-perfCheck]  检测性能

[data-locator=db-editor] [data-locator=menu] [data-locator=action-dynamicPerfCheck]  报告执行过程

[data-locator=db-editor] [data-locator=g-toolbar] [data-locator=action-download]  数据下载

[data-locator=db-editor] [data-locator=g-toolbar] [data-locator=action-dataMode]  元数据

[data-locator=db-editor] [data-locator=menu] [data-locator=action--1] 样本数据

[data-locator=db-editor] [data-locator=g-toolbar] [data-locator=action-layout]  桌面布局

[data-locator=db-editor] [data-locator=menu] [data-locator=action--1] 手机布局

[data-locator=db-editor] [data-locator=menu [data-locator=action-40] 输出布局

[data-locator=db-editor] [data-locator=g-toolbar] [data-locator=action-preview]  报告预览

[data-locator=db-editor] [data-locator=g-toolbar] [data-locator=action-fullScreen]  报告全屏

[data-locator=db-editor] [data-locator=g-toolbar] [data-locator=action-saveDB]  保存报告

[data-locator=db-editor] [data-locator=g-toolbar] [data-locator=action-saveAsDB]  另存报告

DB_toolbar_make

预览报告悬浮工具栏

[data-locator=db-editor] [data-locator=g-toolbar] [data-locator=action-39]  撤销

[data-locator=db-editor] [data-locator=g-toolbar] [data-locator=action-38]  重做

[data-locator=db-editor] [data-locator=g-toolbar] [data-locator=action-52]  刷新

[data-locator=db-editor] [data-locator=g-toolbar] [data-locator=action-101]  清除

[data-locator=action-separator-N]  分隔竖线,N从0开始,表示第一个

说明:

报告中分隔竖线和分隔横线使用的是同一个data-locator。

[data-locator=db-editor] [data-locator=g-toolbar] [data-locator=action-501]  分享

[data-locator=db-editor] [data-locator=g-toolbar] [data-locator=action-36]  邮件

[data-locator=db-editor] [data-locator=g-toolbar] [data-locator=action-99]  订阅

[data-locator=db-editor] [data-locator=menu] [data-locator=action-subscribe-setting] 新建订阅

[data-locator=db-editor] [data-locator=g-toolbar] [data-locator=action-37]  输出

[data-locator=db-editor] [data-locator=menu] [data-locator=action-export-pdf]  输出PDF格式

[data-locator=db-editor] [data-locator=menu] [data-locator=action-export-xlsx]  输出Excel格式

[data-locator=db-editor] [data-locator=menu] [data-locator=action-export-doc] 输出Word格式

[data-locator=db-editor] [data-locator=menu] [data-locator=action-export-docforedit] 输出Word格式(易编辑)

[data-locator=db-editor] [data-locator=menu] [data-locator=action-export-png]  输出PNG格式

[data-locator=db-editor] [data-locator=menu] [data-locator=action-export-csv] 输出CSV格式

[data-locator=db-editor] [data-locator=menu] [data-locator=action-export-pptx] 输出PPT格式

[data-locator=db-editor] [data-locator=g-toolbar] [data-locator=action-40]  输出布局

[data-locator=db-editor] [data-locator=g-toolbar] [data-locator=action-529] 演示

[data-locator=db-editor] [data-locator=menu] [data-locator=action-demo-Manual] 手动演示

[data-locator=db-editor] [data-locator=menu] [data-locator=action-demo-auto] 自动演示

[data-locator=db-editor] [data-locator=g-toolbar] [data-locator=action-502]  提交

[data-locator=db-editor] [data-locator=g-toolbar] [data-locator=action-505]  打印

[data-locator=db-editor] [data-locator=g-toolbar] [data-locator=action-527]  性能

[data-locator=db-editor] [data-locator=g-toolbar] [data-locator=action--1]  手机型号、手机屏幕大小

[data-locator=db-editor] [data-locator=g-toolbar] [data-locator=action-167]  全屏

[data-locator=db-editor] [data-locator=g-toolbar] [data-locator=action-62]  关闭

[data-locator=db-editor] [data-locator=g-toolbar] [data-locator=action--1] 收起工具栏/展开工具栏

DB_toolbar_preview_mobile

查看报告界面的data-locator

树状视图

[data-locator=db-viewer] [data-locator=tree-rep-tree] [data-locator=searchInput]   左侧资源树上方的搜索

[data-locator=db-viewer] [data-locator=tree-rep-tree] [data-locator=moreButton] [data-locator=action-tree-more]     左侧资源树上方的更多

[data-locator=db-viewer] [data-locator=tree-rep-tree] [data-locator=action-multi-share]   左侧资源树上方的更多/批量分享

[data-locator=db-viewer] [data-locator=tree-rep-tree] [data-locator=action-lineage-analyze]  左侧资源树上方的更多/查看血缘

[data-locator=db-viewer] [data-locator=menu] [data-locator=action-refresh]  左侧资源树上方的更多/刷新



ViewDB_tree_0

[data-locator=db-viewer] [data-locator=tree-rep-tree] [data-locator=action-common-tree-more]   报告/更多

[data-locator=db-viewer] [data-locator=tree-rep-tree] [data-locator=action-open]  报告/打开报告

[data-locator=db-viewer] [data-locator=tree-rep-tree] [data-locator=action-add-to-my-db]  报告/收藏

[data-locator=db-viewer] [data-locator=tree-rep-tree] [data-locator=action-cancel] 报告/取消收藏

[data-locator=db-viewer] [data-locator=tree-rep-tree] [data-locator=action-share]  报告/分享

[data-locator=db-viewer] [data-locator=tree-rep-tree] [data-locator=action-lineage-analyze] 报告/查看血缘

[data-locator=db-viewer] [data-locator=tree-rep-tree] [data-locator=action-dowload] 报告/下载

[data-locator=db-viewer] [data-locator=tree-rep-tree] [data-locator=action-168] 报告/复制报告链接

ViewDB_tree_2

[data-locator=db-viewer] [data-locator=tree-rep-tree] [data-locator=action-cancel-all-attentions]收藏/取消全部收藏

ViewDB_tree_3

[data-locator=db-viewer] [data-locator=tab-close] 关闭单个报告

[data-locator=db-viewer] [data-locator=tab-delete-all]  关闭全部报告

DB_close_tree

图标视图:

[data-locator=db-portal] [data-locator=action-to-parent]  后退

[data-locator=db-portal] [data-locator=action-refresh]  刷新

[data-locator=db-portal] [data-locator=action-share]  分享

[data-locator=db-portal] [data-locator=action-lineage-analyze] 查看血缘

 [data-locator=db-portal] [data-locator=searchInput] 搜索

[data-locator=db-portal] [data-locator=action-add-to-my-db]  收藏

[data-locator=db-portal] [data-locator=action-cancel] 取消收藏

[data-locator=db-portal] [data-locator=action-more] 更多

[data-locator=menu] [data-locator=action-download]  更多/下载

[data-locator=menu] [data-locator=action-168]  更多/复制报告链接

[data-locator=menu] [data-locator=action-share]  更多/分享

[data-locator=tab-close]  关闭单个报告

[data-locator=tab-delete-all]  关闭全部报告

ViewDB_icon

DB_close_icon

查看报告悬浮工具栏

[data-locator=db-viewer] [data-locator=g-toolbar] [data-locator=action-39]  撤销

[data-locator=db-viewer] [data-locator=g-toolbar] [data-locator=action-38]  重做

[data-locator=db-viewer] [data-locator=g-toolbar] [data-locator=action-52]  刷新报表数据

[data-locator=db-viewer] [data-locator=g-toolbar] [data-locator=action-101]  清除

[data-locator=db-viewer] [data-locator=g-toolbar] [data-locator=action--1]  编辑

[data-locator=db-viewer] [data-locator=g-toolbar] [data-locator=action-82]  返回

[data-locator=action-separator-N]  分隔竖线,N从0开始,表示第一个

说明:

报告中分隔竖线和分隔横线使用的是同一个data-locator。

[data-locator=db-viewer] [data-locator=g-toolbar] [data-locator=action-501]分享

[data-locator=db-viewer] [data-locator=g-toolbar] [data-locator=action-36]  邮件

[data-locator=db-viewer] [data-locator=g-toolbar] [data-locator=action-99]  订阅

[data-locator=menu] [data-locator=action-subscribe-setting] 新建订阅

[data-locator=db-viewer] [data-locator=g-toolbar] [data-locator=action-37]  输出

[data-locator=menu] [data-locator=action-export-pdf]  输出PDF格式

[data-locator=menu] [data-locator=action-export-xlsx]  输出Excel格式

[data-locator=menu][data-locator=action-export-doc] 输出Word格式

[data-locator=menu][data-locator=action-export-docforedit] 输出Word格式(易编辑)

[data-locator=menu] [data-locator=action-export-png]  输出PNG格式

[data-locator=menu] [data-locator=action-export-csv] 输出CSV格式

[data-locator=menu] [data-locator=action-export-pptx] 输出PPT格式

[data-locator=db-viewer] [data-locator=g-toolbar] [data-locator=action-40]  输出布局

[data-locator=db-viewer] [data-locator=g-toolbar] [data-locator=action-503]  书签

[data-locator=menu] [data-locator=action-bookmark-create] 创建书签

[data-locator=menu] [data-locator=action-bookmark-edit] 编辑书签

[data-locator=db-viewer] [data-locator=g-toolbar] [data-locator=action-529] 演示

[data-locator=menu] [data-locator=action-demo-Manual] 演示/手动演示

[data-locator=menu] [data-locator=action-demo-auto] 演示/自动演示

[data-locator=db-viewer] [data-locator=g-toolbar] [data-locator=action-504]  保存草稿

[data-locator=db-viewer] [data-locator=g-toolbar] [data-locator=action-502]  提交

[data-locator=db-viewer] [data-locator=g-toolbar] [data-locator=action-505]  打印

[data-locator=g-toolbar] [data-locator=action-download] 下载

[data-locator=db-viewer [data-locator=g-toolbar] [data-locator=action-527]  性能

[data-locator=db-viewer] [data-locator=g-toolbar] [data-locator=action-65]  保存

[data-locator=db-viewer] [data-locator=g-toolbar] [data-locator=action-67]  另存为

[data-locator=db-viewer] [data-locator=g-toolbar] [data-locator=action-167]  全屏

[data-locator=db-viewer] [data-locator=g-toolbar] [data-locator=action-62]  关闭



DB_toolbar_view

Wap界面的data-locator

[data-locator=hidden-download] 下载

[data-locator=hidden-search] 搜索框

[data-locator=hidden-header] 工具栏

WapTop

2.3报告data-locator获取方法

如果你想隐藏的报告相关的操作不在上文所列举的信息中,您可以通过以下方式获取data-locator。数据源和数据集暂不支持用户通过此方法获取。

浏览器打开开发者模式,在控制台输入命令行“window.getYHAPI('startFindUILocator').then((m) => {m()});”回车,然后点击操作,控制台会返回data-locator。

使用完成后在控制台输入命令行“window.getYHAPI('stopFindUILocator').then((m) => {m()});”结束查找data-locator。

Get_Locator

3.配置属性

hidden.command.bar=true,同时隐藏首页、退出等按钮

hide.portal.home.icon=true,隐藏门户的首页图标。

hide.portal.exit.icon=true,隐藏门户的退出图标。

hidden.portal.bar.greet=true,隐藏门户的问候语。

hide.advanced.options=true,隐藏个人中心-个性化设置中的邮箱、账号密码

qrcode.visible=true,隐藏个人中心的服务器二维码

ml.homepage.hide=true,隐藏深度分析内置的行业案例。

permission.asset.author.hide=true,隐藏【管理系统>认证授权】下的授权编辑标签页。

sched.type.email.hide=true,隐藏发送邮件。

user.edit.strict=true,隐藏【系统设置 > 认证授权 > 用户邮箱、用户密码、批量导入用户、批量导出用户。

global.action.hidden=XXX,隐藏数据源、数据集、订阅、邮箱、作业执行提醒设置、网页组件

phone.browser.showToolbar=true,隐藏移动端报告顶部的工具栏

hideDBToolbar=hide,hide,hide,隐藏移动端报告工具栏上的返回、标题、更多菜单

hideFullscreenToolbar=hide,hide,hide,隐藏移动端组件工具栏上的返回、标题、更多菜单

lightdbToolbar=false,隐藏轻应用内报告的工具栏

4.配置URL参数

在手机浏览器URL后面添加参数dbToolbar=false,隐藏当前浏览器查看的报告的顶部工具栏

在手机浏览器URL后面添加参数download=false,隐藏当前浏览器下载App入口

在手机浏览器URL后面添加参数hideDBToolbar=true,隐藏当前浏览器报告工具栏上的返回、标题、更多菜单

在手机浏览器URL后面添加参数hideFullscreenToolbar=true,隐藏当前浏览器组件工具栏上的返回、标题、更多菜单

在手机浏览器URL后面添加参数hideAttention=true,隐藏当前浏览器报告收藏功能

在手机浏览器URL后面添加参数showToolbar=false,隐藏当前浏览器首页菜单、搜索框。

在手机浏览器URL后面添加参数lightDBtoolbar=false,隐藏轻应用内报告的工具栏
