<< Click to Display Table of Contents >> Current:  WorkFlow > Deploy Workflow System  Deploy Workflow System

Configure the process approval environment, starting from 8.6, no need to configure in bi.properties, just configure the interface, the configuration is successful, refresh the workflow page, you do not need to restart the product.

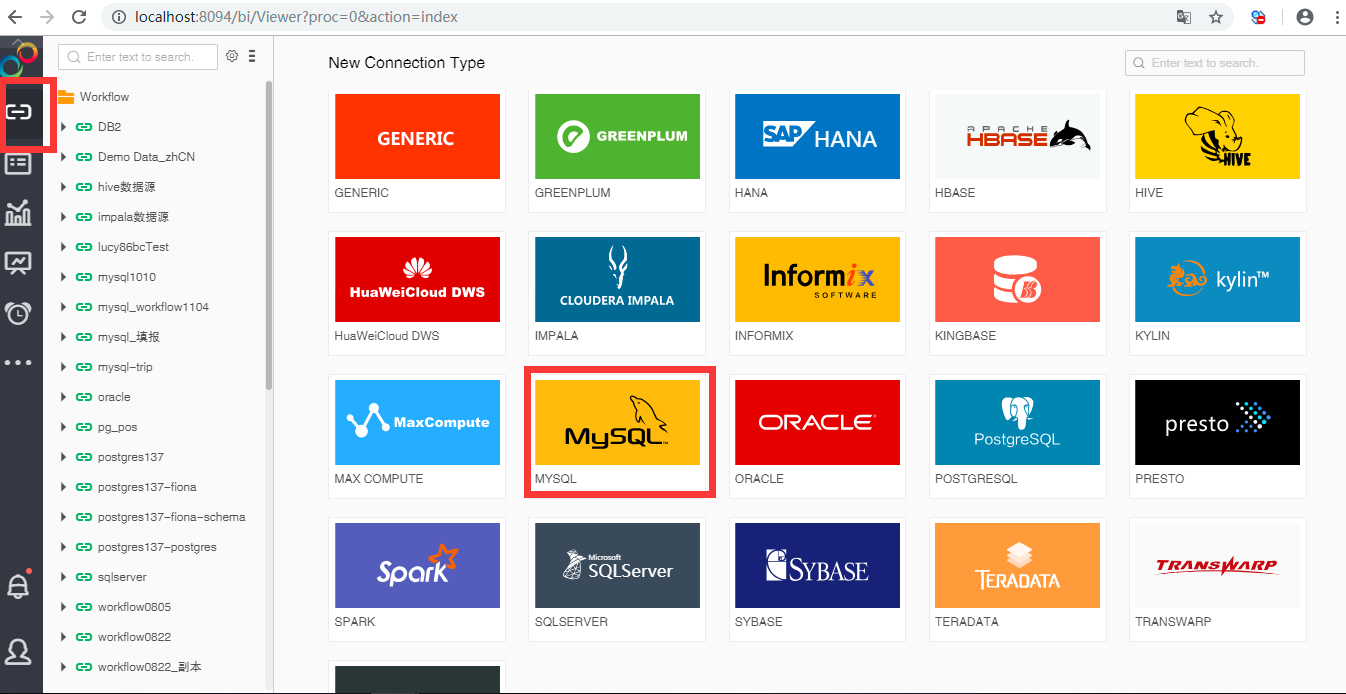

1 The database that needs to be configured for process approval needs to “add data source” first to the configuration.

Process approval support database type: oracle\mysql\postgresql\sql server



Take mysql as an example

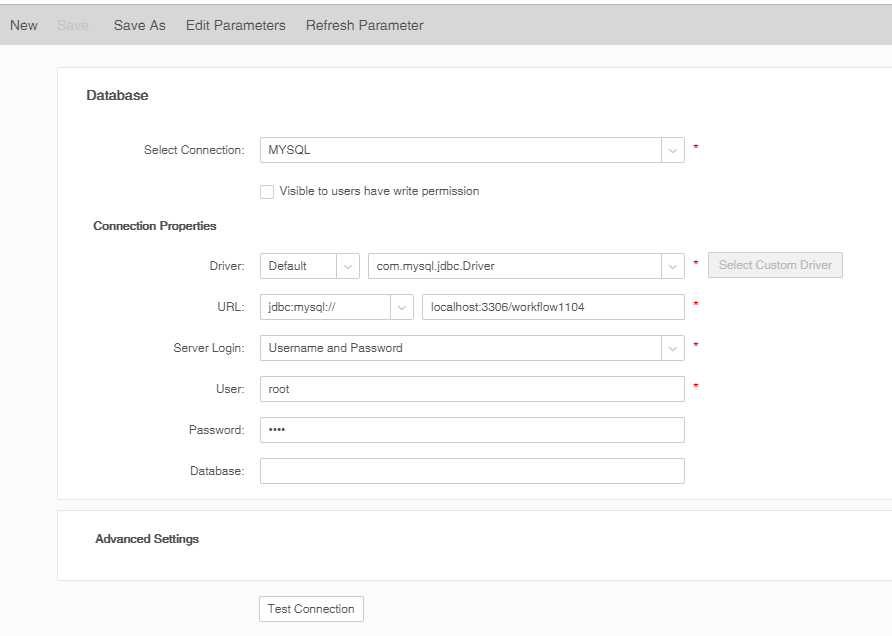

Fill in the database information to be installed according to the prompts.

then save the data source



System Settings--Database Connection Configuration--Process Approval

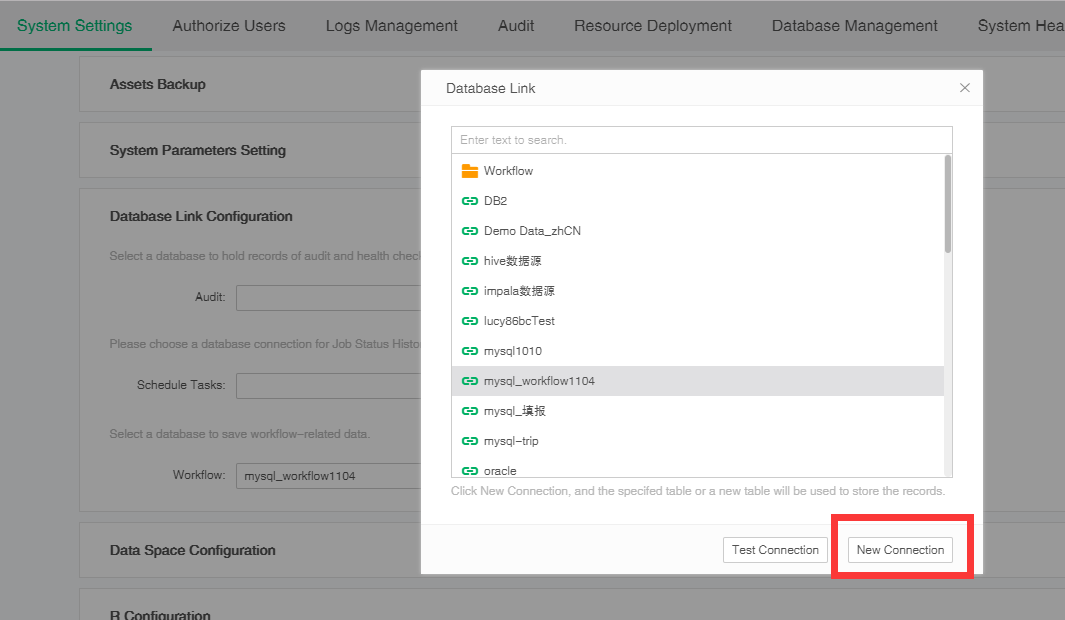

Select the data source you just saved, click "Create Connection" and wait for the connection to be created.

* Test connection, which refers to the database connectivity to be tested, does not guarantee that the database can properly configure the workflow

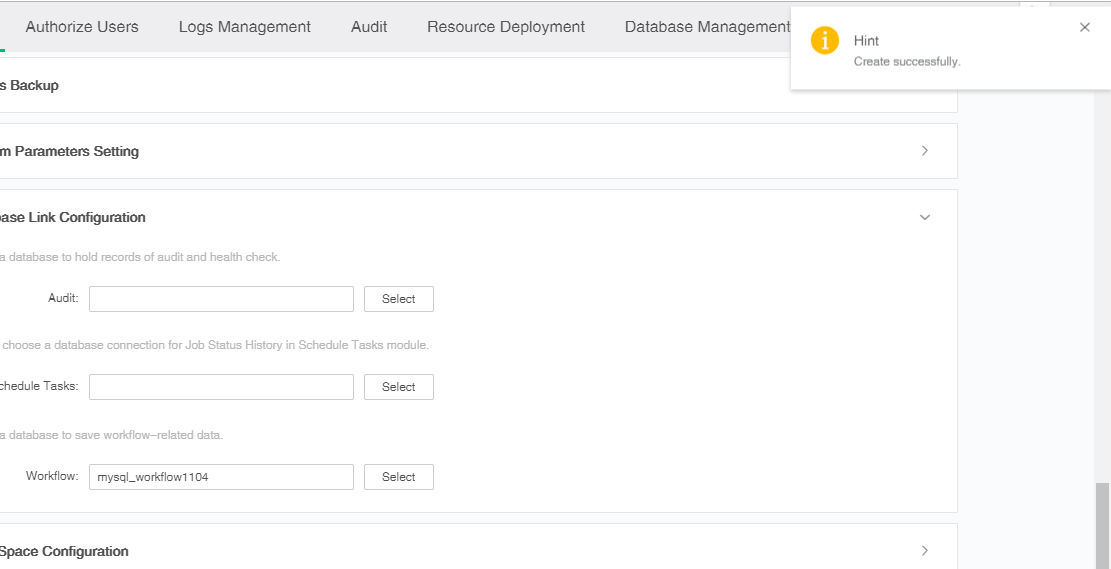

In the upper right corner of the configuration completion page, there will be a prompt to create a successful one.

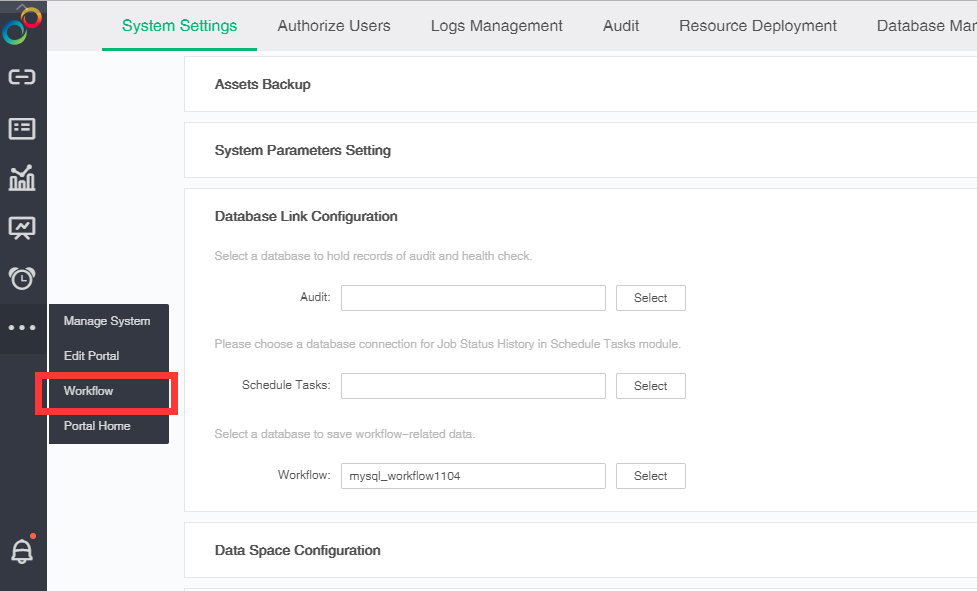

Click on “Process Approval” and refresh the page to see the interface.



It is recommended that users use the interface configuration to install process approvals.

For 8.5.1, the four parameter configurations in bi.properties are used. After the upgrade, the new data source is configured by interface, then the original four parameters will not be used.





2.Delete connection

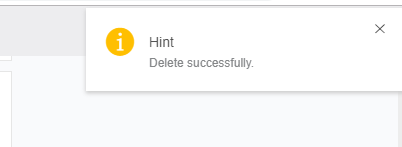

In version 8.7, a delete connection button was added, which can delete the data source configured by the workflow, and the deletion can be successful. Select another data source, in fact, the table will not be deleted.

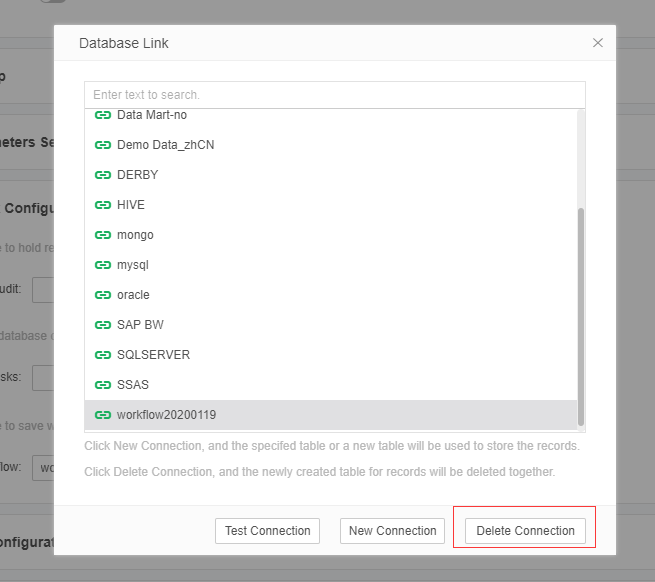

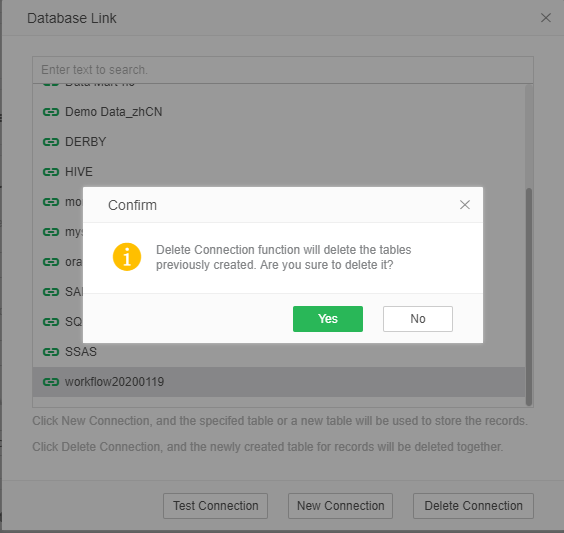

After clicking "Delete Connection", a confirmation dialog will pop up. Clicking "Yes" will perform the database deletion operation, and clicking "No" will not perform the operation.

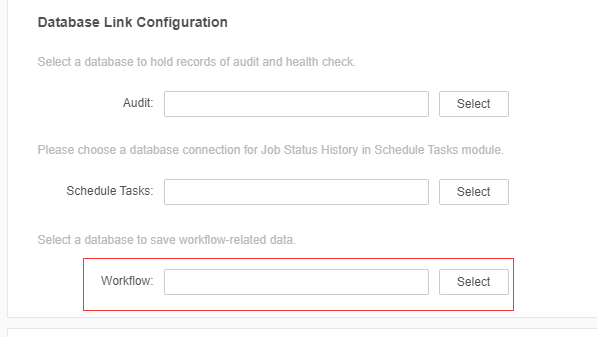

After waiting for deletion, the Process Approval configuration under the database connection configuration is blank

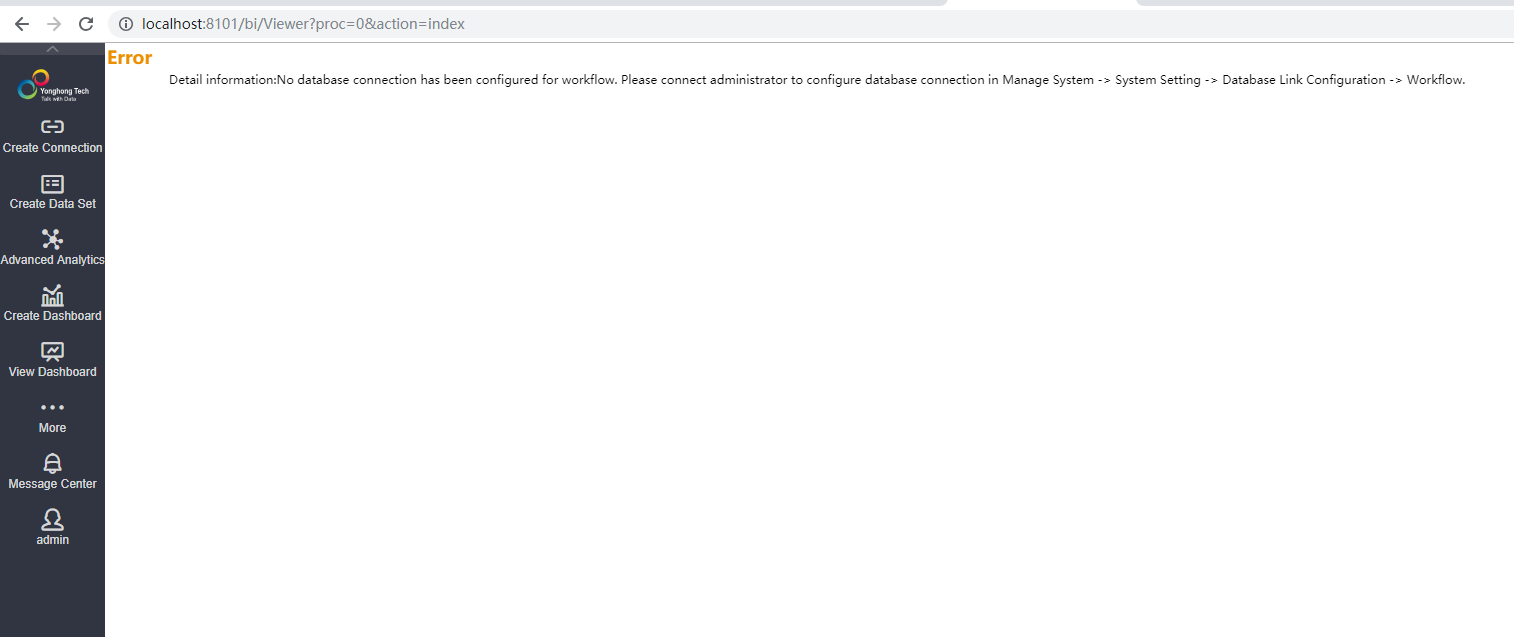

Click to refresh the "workflow" page, showing that the process has not been configured
