<< Click to Display Table of Contents >> Current:  Advanced Analytics > Statistical Analysis  Chi-square Test

Analyze whether the relationship between two categorical variables is significant .



How-To-Use:

The front node of this node needs to have the output of the data set.



Precautions:

[Category A] Only one column can be selected.

[Category B] Only one column can be selected.

❖Configuration

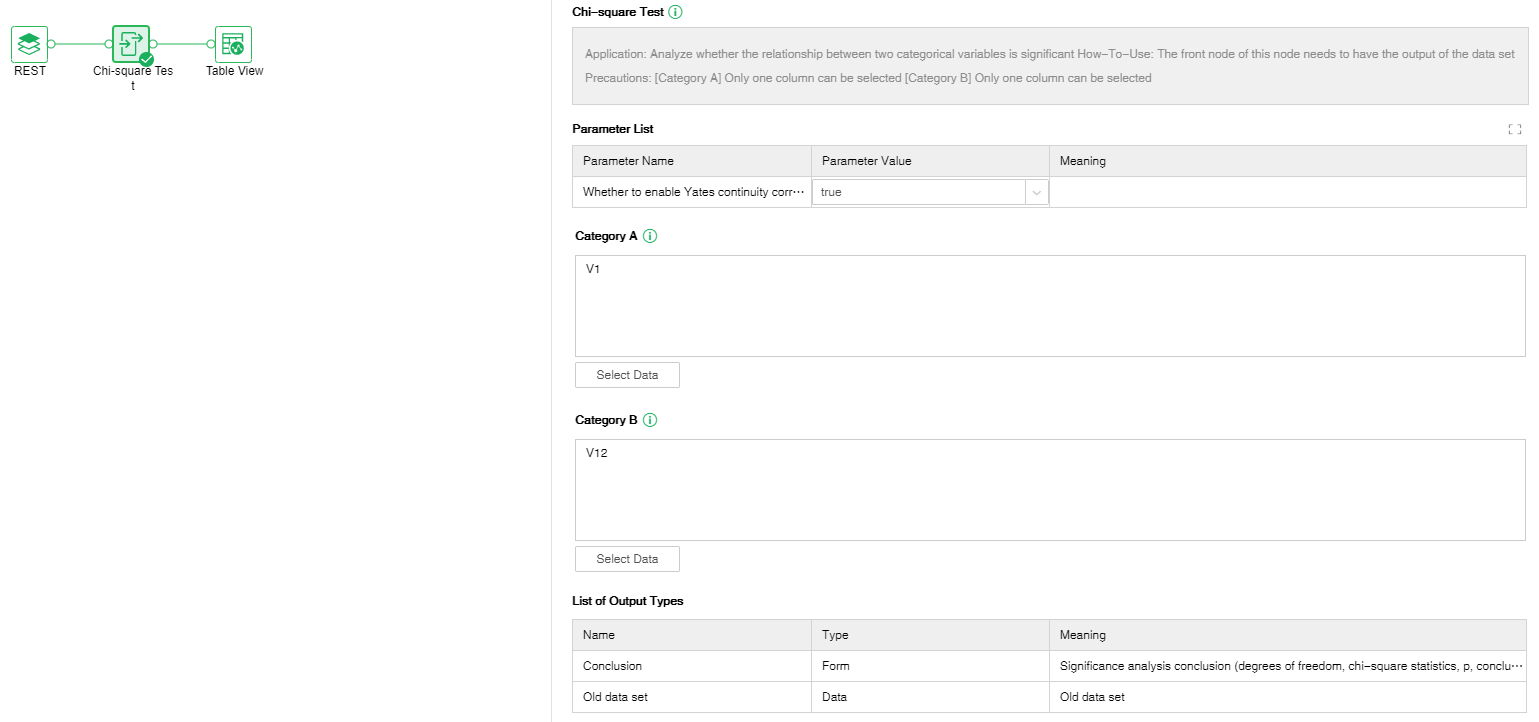

After adding the Chi-square Test node to the experiment, you can set the Chi-square Test node through the "Configuration" page on the right.

[Whether to enable Yates continuity correction] true is enabled; false is not enabled. The purpose of the correction is to reduce the error in the process of approximating discrete frequency data to the continuous chi-square statistic in the case of small samples.

[Category A] Chi-square test category column, only one column can be selected.

[Category B] Chi-square test category column, only one column can be selected.

Right click menu of Chi-square Test:

❖Run Chi-square Test Node

Run the node, pass the data to DM-Engine for calculation, and get the output result.



❖Reset Chi-square Test Node

The node that has been running is reset, the returned result is deleted, and the node status is changed to not running.



❖Rename Chi-square Test Node

In the right-click menu of the Chi-square Test node, select "Rename" to rename the node.



❖Refresh Chi-square Test Node

In the right-click menu of the Chi-square Test node, select "Refresh" to update the synchronization data or parameter information.



❖Save as Composite Node

In the right-click menu of the Chi-square Test node, select "Save as Composite Node",The selected node can be saved as a composite node to realize a multiplexing node, and the parameters of the saved node are consistent with the original node.



❖Cut Chi-square Test Node

In the right-click menu of the Chi-square Test node, select "Cut" to realize node cutting operation.



❖Copy Chi-square Test Node

In the right-click menu of the Chi-square Test node, select "Copy" to realize node  replication operation.



❖Delete Chi-square Test Node

In the right-click menu of a Chi-square Test node, select "Delete" or click the delete key on the keyboard to delete the node and its input and output connections.
