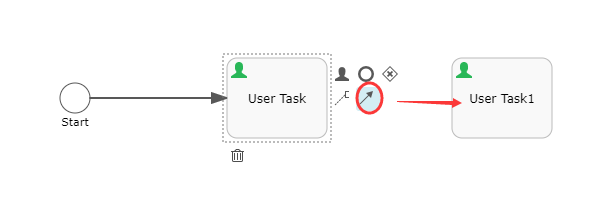

We can add process lines to the nodes and specify the direction of the process.

Select the process line to set the properties of the process line, including: name, description, line condition, and whether to return.







Line condition: Same as the line condition for setting the process line to determine the process direction and whether to continue down. For example, we can determine whether a value of the previous node meets the standard. If the line condition is not met, the line will not be taken.

Conditional judgments are:

Greater than  >

Less than  <

Equal to  ==

Not equal !=

Greater than or equal to  >=

Less than or equal to  <=

Or  ||

And  &&



Line conditions need to be written in a fixed format, for example: ${parameter 1=='Resolved'||parameter 2>=0}



Whether to return: The default is "No". If it is checked to "Yes", the process can be rolled back when the node is in the node.
