How Multi Dimension Connection Access Data

Previous pageReturn to chapter overviewNext page

XMLA (XML for Analysis) is a Simple Object Access Protocol (SOAP)-based XML protocol designed for general-purpose data access to any standard multi Dimension Connection residing on the Web. Yonghong products are connected by xmla over http for the three multidimensional databases currently supported.

Data source for Multi Dimension Connection

database

data soource

SAP BW

InfoCube and BEx Query

SSAS

Cube

ESSBASE

Outline

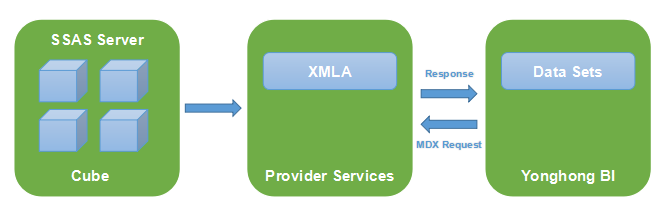

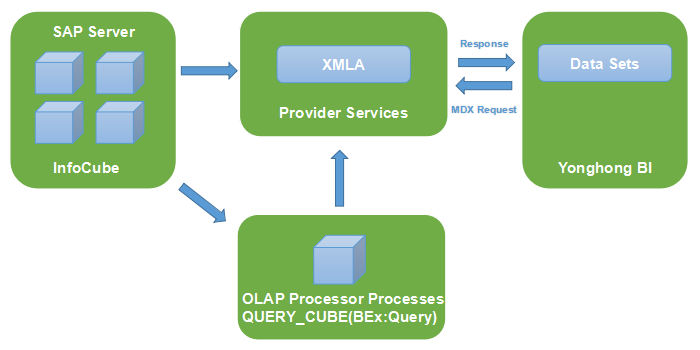

Implementation mechanism of Multi Dimension Connection access data

SSAS, ESSBASE, and SAP BW support the following two query interfaces. Our products use the XMLA interface.

Interface

Query language

Call interface

OS platform

OLE DB

MDX

Component Object Model(COM)

Windows

XMLA

MDX

XML over HTTP/SOAP

Cross operating system



multi1

multi2

multi3
