<< Click to Display Table of Contents >> Current:  Appendix > Page Introduction > Advanced Analytics Page > Advanced Analytic Editing Page > Edit Area  Editing Nodes

❖Global Editing

[Select] Click to select a single node or multiple nodes by pressing Ctrl at the same time. The background color of the selected node is darkened.

[Rename] Click the right button to rename the node.

[Refresh] Click the right button to refresh which can update synchronization data or parameter information.

[Cut] Click the right button to cut, the background color of the node becomes lighter, the node can be cut, and the configured parameters and selected columns can be saved. Support shortcut key Ctrl+X.

[Copy] Click the right button to copy, you can copy the node, and save the configured parameters and selected columns. Support shortcut key Ctrl+C.

[Paste] Click the blank area of the canvas to paste, and paste the cut or copied node to the area where the mouse pointer belongs. Support shortcut key Ctrl+V.

[Delete] To delete one node as well as its input and output connections, press "Delete" on the keyboard or right-click the node and choose "Delete" from the context menu.

[Save as Composite Node] to realize node preservation and reuse. Supports the saving of single and multiple nodes, including plug-in node parameter values and selected operation columns. After selecting the node, right-click to save as a combined node and select the save path. The root directory is the combined node folder for operating the Tree, and the saved nodes can be reused by dragging to the canvas.

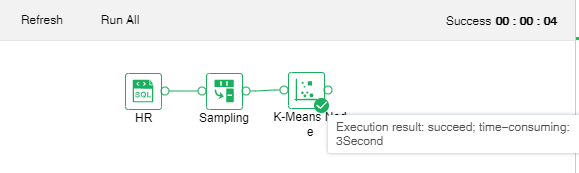

[Run All] Multiple modeling nodes can be created in the edit area. Click Run all, and then the modeling nodes will run from upper to bottom, and from left to right. They will stop running in case of any failure.

[Running state] Not running, run successfully, run failure.

[Run time] Single node running displays the running time of this node; run all shows the total running time.



❖Data Node

[Open Data Set] Click the right button of the data node to open the data set which can open the data set in data set module.(This function is not available when integrated)

[Show/Hide All Columns] Hide all columns of metadata of the data node. On the contrary, all columns will display.

[Copy] Select the data node for duplication.

[Paste] After select Duplicate, paste to the blank area of the canvas by clicking the right button. Duplicate the data node.



❖Algorithm & Export & Script Node

[Run] After the modeling node information is configured, click the right button to run the modeling node.
