<< Click to Display Table of Contents >> Current:  System Management   Database Management

Note: This module is supported by Z-Suite by default; it is an advanced module of X-Suite products, and X-Backup needs to be purchased separately; this function is not supported in Y-Reporting, Y-Vivid Show, and Desktop.

Database management is used to view the file information stored in the database. The information is shown in a tree structure. Expand the node can check the contents stored under each node.



❖View Database Manage

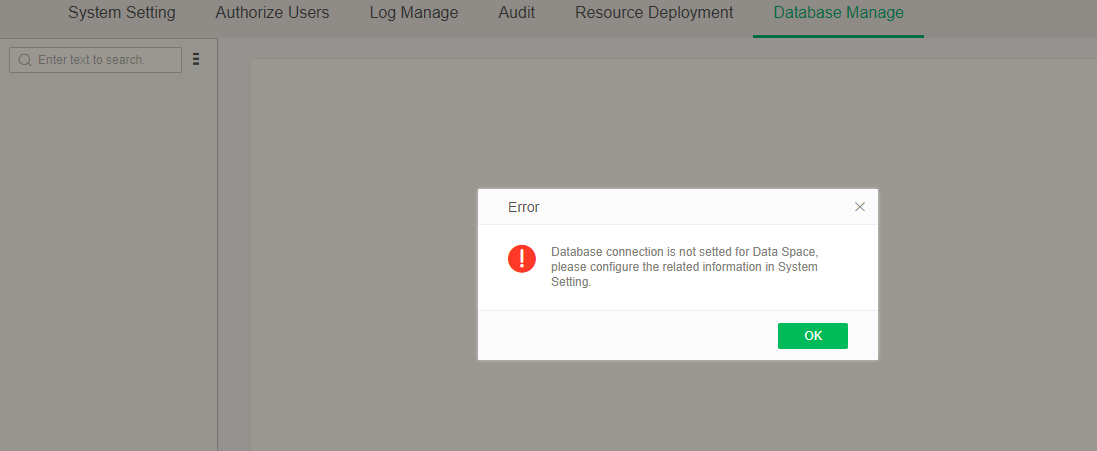

When no data space is configured, the database connection information for data space will be showed  in the figure below:

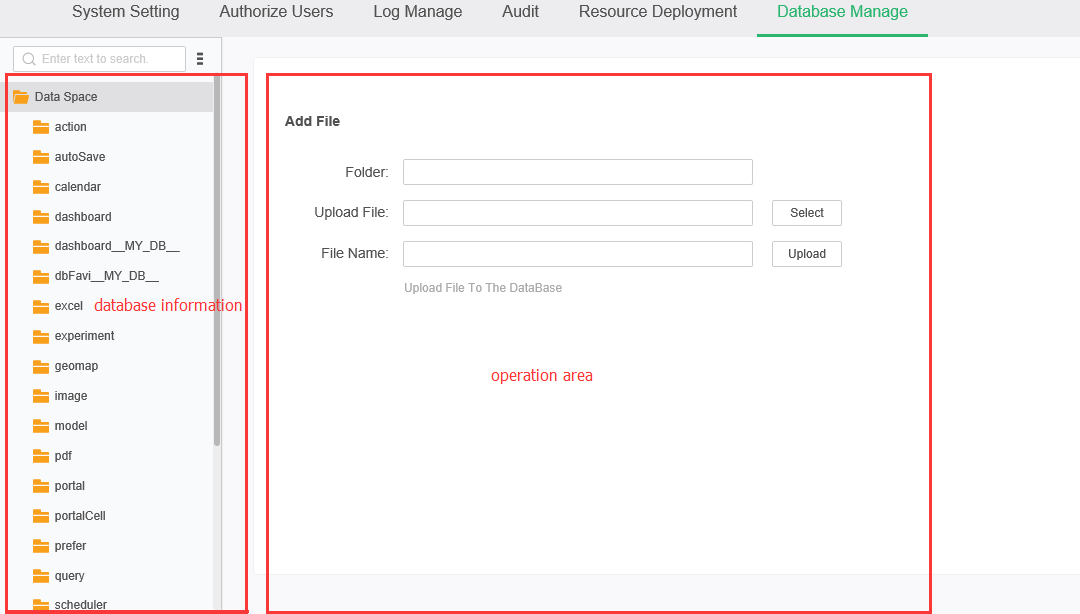

Configure data space on homepage - > manage system - > system setting page. See the detailed information of data space configuration contents in system setting interface. After creating the table, select the "file system to database" and click Synchronize. After the synchronization, switch to the database manage page, the "database manage" list is as shown in the figure below:



❖Database information

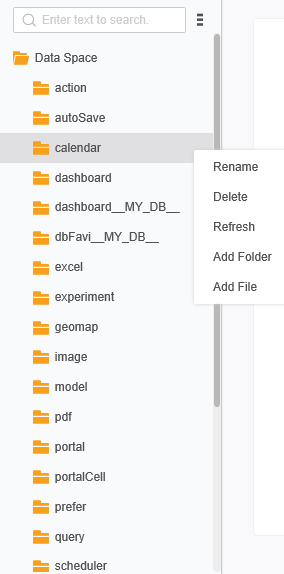

Database information displays all the information in the database table which synchronized by the user from file system. The user can create folder and file, rename the folder or file, delete the folder or file, refresh the list etc.

It is not supported to change the location of a file or folder by dragging the mouse in the database information.

•Search for database information

Search the folders or files containing the characters according to the input text.

•Rename

Rename the file or folder. The user first selects or hovers the file or folder that needs to be renamed, and then clicks "More" to select the "rename" option.

•Delete

Files or folders not needed by the user can be removed. After the user removes the folder, the files in this folder will also be removed.

•Refresh

Refresh the current database information list.

•Add Folder

The user can choose "Add Folder" option by clicking "More" button at the list area to create a folder.

•Add File

The user can choose "Add File" option by clicking "More" button at the list area to create a file.



❖Operation area

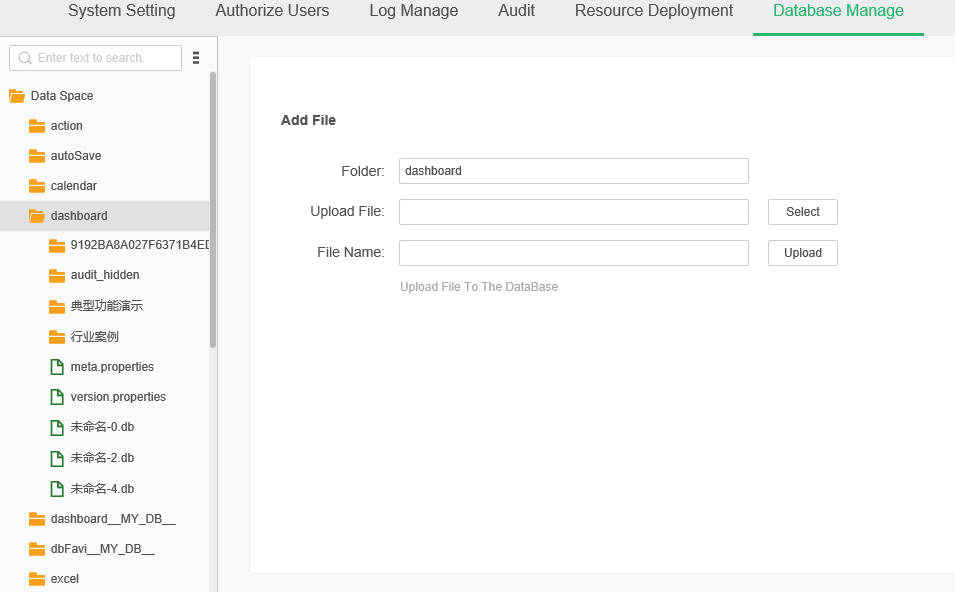

Select the folder and the information of new file will be displayed in the operation area as shown below:

【Folder】The name of the selected folder, which is the location where the file will be uploaded.

【Upload File】Click selection button to select the file to be uploaded from local site.

【File Name】The name of the uploaded file. It is the name of the selected source file, which can be modified. After clicking the upload button, the file is uploaded to the corresponding folder.

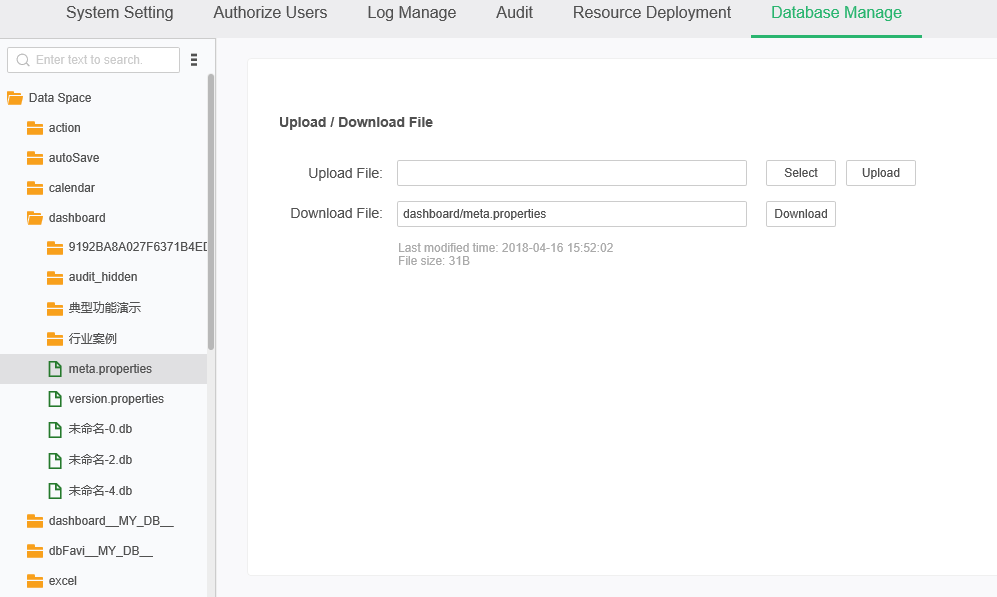

Select the file and the information of upload/download file will be displayed in the operation area  as shown in the figure:

【Upload File】Click selection button to select the file to be uploaded from local site. Click the upload button to replace the selected file. Only the file contents will be replaced, the original name of the file remains unchanged.

【Download File】Select the path of the file. Click the download button to download the file to the machine.

【Last modified time & File size】Display the last modified time and size of the file.



❖X-Backup

In the x-suite, it provides better high availability support for the use of dual C load balancing environment. In the case of two C nodes, select a C as the primary C node, and select a C node as the primary C node bi.properties Medium configuration xbackup.balance.main=true It can realize the following functions:

1. Nginx environment gives priority to the primary node, and the secondary node is accessed only when the primary node is unable to connect

2. After the connection of the master node is restored, it can automatically switch back to the primary node
