❖Create Dashboard
Supported version: 7.13 and later

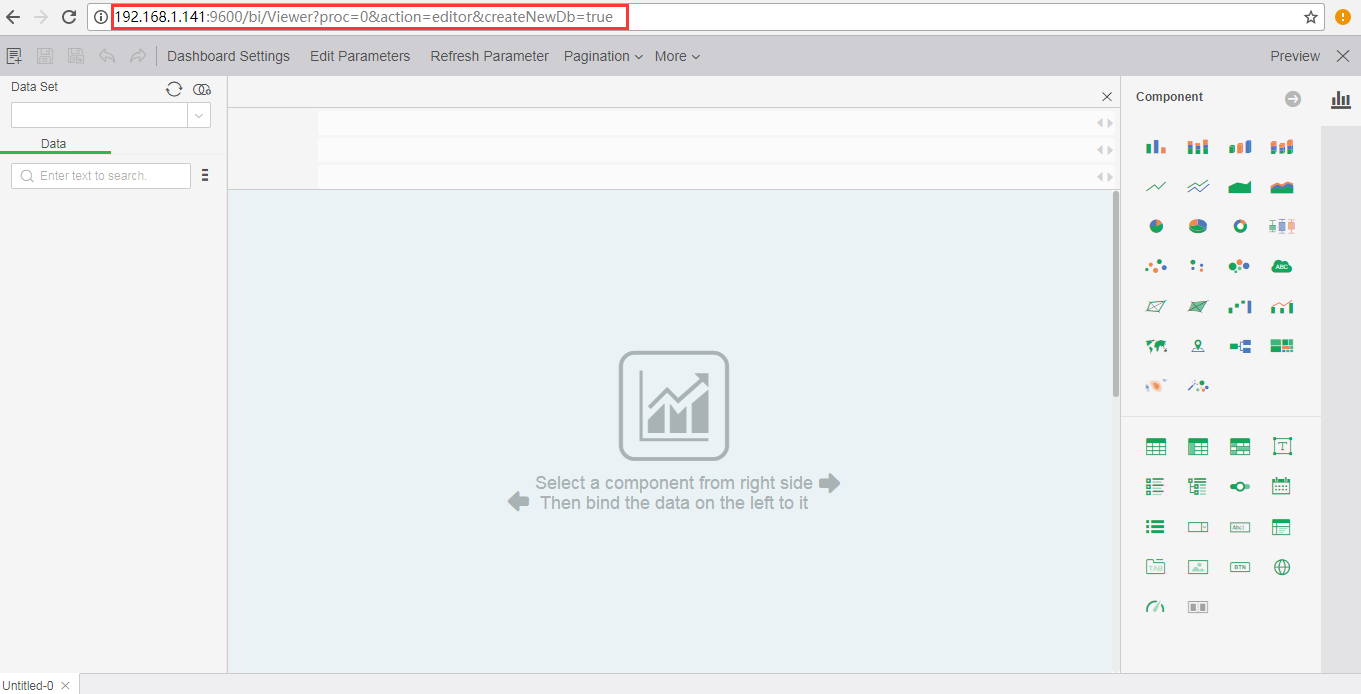

Enter URL in the browser:http://ip:port/bi/Viewer?proc=0&action=editor&createNewDb=true And when passing the correct parameters, the new dashboard interface under the production report will open. As shown in the following figure:
❖Open the dashboard folder
Supported version: 7.0 and later

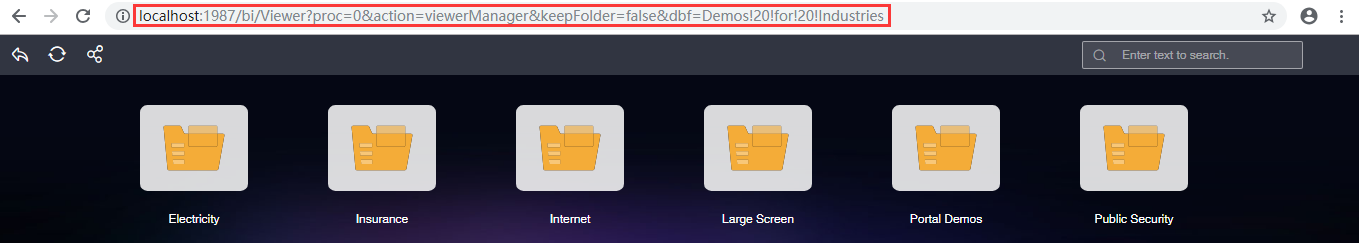

Enter URL in the browser:http://ip:port/bi/Viewer?proc=0&action=viewerManager&keepFolder=false&dbf=Demos!20!for!20!Industries When the correct parameters are passed, the interface for the dashboard folder under the view dashboard, such as : Demos for Industries . As shown in the following figure:
Parameters (the parameters in the following table are variable parameters， the other parameters in the url are fixed values）
Parameter |
Type |
Whether must |
Describe |
|---|---|---|---|
dbf |
string |
must |
The path to the dashboard folder. such as"行业案例" |
❖Open the dashboard
Supported version: 7.0 and later

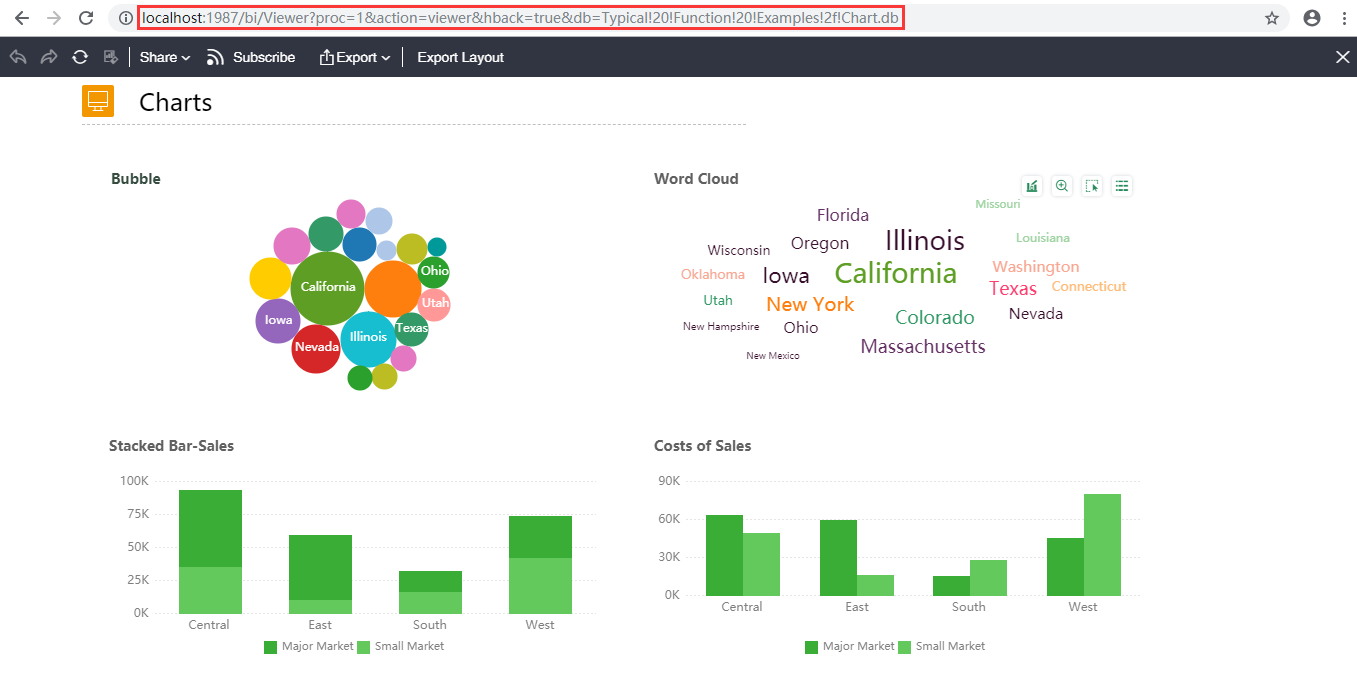

Enter URL in the browser:http://ip:port/bi/Viewer?proc=1&action=viewer&hback=true&db=Typical!20!Function!20!Examples!2f!Chart.db When the correct parameters are passed, the dashboard interface under the view dashboard opens,such as：Typical Function Examples/Chart.db。As shown in the following figure:
Parameters (the parameters in the following table are variable parameters， the other parameters in the url are fixed values）
Parameter |
Type |
Whether must |
Describe |
|---|---|---|---|
db |
string |
must |
Full path to the dashboard .such as"Typical Function Examples/Chart.db" |
Other parameters |
|
|
All parameters in this HTTP request are added to the dashboard as dashboard parameters except those in the exclude parameters list. Exclude parameter list:proc, action, fitSize, fitWidth, db, resource, serverURL A partition !a! can be used for multivalued ,such as：deptno=10!a!20。For the parameter format, please refer to the appendix parameter format。 |
❖Output dashboard
Supported version: 7.0 and later

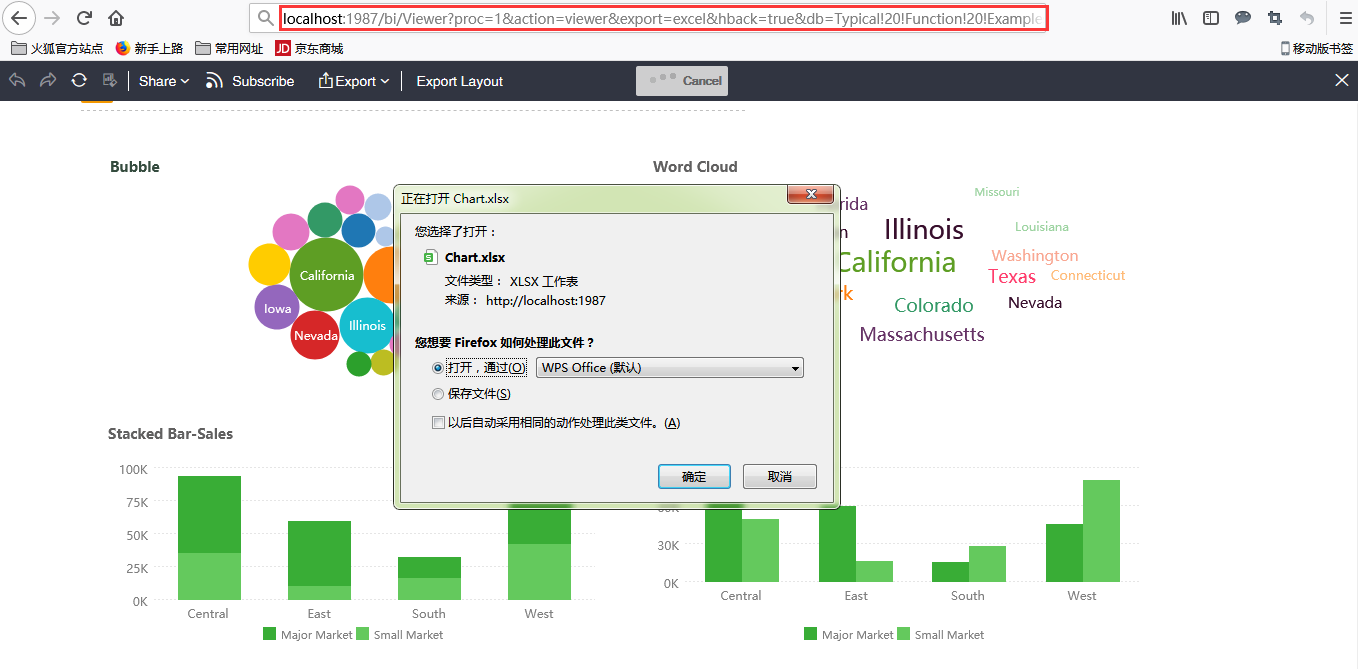

Enter URL in the browser:http://ip:port/bi/Viewerproc=1&action=viewer&export=excel&hback=true&db=Typical!20!Function!20!Examples!2f!Chart.db When the correct parameters are passed, the developed dashboard is output to a file, and the browser is prompted to download the file，such as：Typical Function Examples/Chart.db . As shown in the following figure:
Parameters (the parameters in the following table are variable parameters， the other parameters in the url are fixed values）
Parameter |
Type |
Whether must |
Describe |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
db |
string |
must |
The complete path of the dashboard. such as"Typical Function Examples/Chart.db" |
||||||||||||
export |
string |
must |
Output file type. The optional values are as follows:
|
||||||||||||
Other parameters |
|
|
Parameters passed to the dashboard, this time HTTP requests that all parameters are added to the dashboard as dashboard parameters. A partition !a! can be used for multivalued ,such as：deptno=10!a!20。For the parameter format, please refer to the appendix parameter format。 |
