❖Create a Tab Component

This product supports two methods to create a label combination.

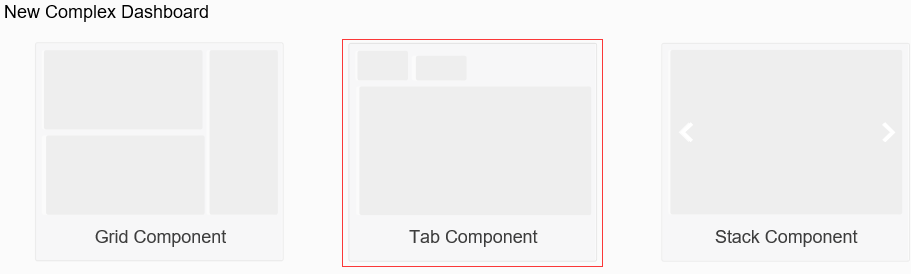

1. Click the Tab Component icon on the portal home page.

2. Select the Tab Component in the drop-down options for the New button.。



❖Add content to a Tab Component

You can drag and drop dashboards, portlets, web pages into tag combinations. Drag a dashboard from the report on the left to the Tab Component as shown:

The display of the dashboard on the label group combination, as shown:

Permissions:

If the content added to the tag has no permissions for the current user, the corresponding prompt is displayed:



❖Pane on the right

Edit the properties of the Tab Component through the Pane on the right, as shown in the right pane:

1. Hide title

Hide the title of the dashboard or portlet. The title defaults to the name of the dashboard or the URL of the page. Hide the title of the component as shown:

2. Clear

Clear the data added in the current tab.



❖Tag attribute

1. Add / delete options

You can add options by clicking the "+" icon after the option. The “X” icon suspended on the label removes the current option. as the picture shows:

When there are multiple options, select by clicking the corresponding tab.

2. Sort

Sort the labels of the Tab Component by dragging the tabs.

3. Tab style

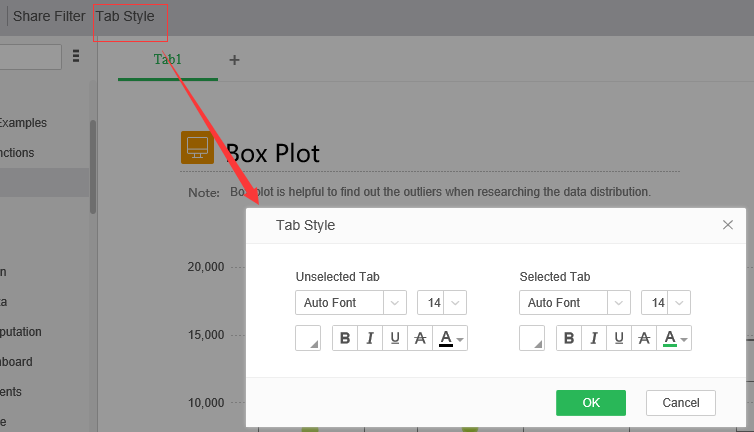

The label style can be set in the right Pane, you can customize the color font of the label, etc. The setting page is as follows:
