❖Component Format

You can set the component format of the chart, and can also set the format of different locators of the chart separately. The component format of the chart is the component format.

Select the component, open Format in the right panel, open the component format drop-down menu, as shown below:

[Font] Sets the font of the text in the component.

[size] Sets the font size of the text in the component.

[Background Color] The background color includes single color, double color, and picture. You can set it as needed.

[Bold] Set the font of the text in the component to bold.

[Italic] Sets the font of the text in the component to italics.

[Underline] Underline the text in the component.

[Delete Line] Sets the strikeout for the text in the component.

[Font Color] Set the font color of the component text

[Border] Adds a border to the component and sets the format and color of the border.

[Alpha] Sets the display level of the background color.

Set the background color:

• Image: You can import the image. Click the name of the image in the image list and you can preview the image in the right area. The types of pictures are divided into stretch, repeat, and nine grid scaling.

When the picture type is stretched, the unit cannot be set. The picture is displayed according to the aspect ratio of the current chart, as shown in the following figure:

When the picture type is duplicated, the picture is displayed on the chart according to the proportion of the original picture, and the unit cannot be set. When the original picture is smaller than the chart, it is displayed repeatedly on the chart, as shown in the following figure:

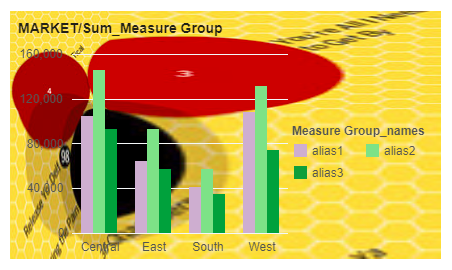

When the type of the picture is Scale9, you can set the zoom position. The current picture is zoomed on the chart in this position area. The top 100px, the bottom 200px, the left 100px, and the right 200px are as follows:

•Single Color: When the background type of the selected chart is single color, you can set the background color and gradient type. This product provides a variety of color gradient types, users can choose according to their needs.

•Double color: When the background type of the selected chart is double color, you can set the starting color, the ending color, and the gradation type. This product provides a variety of color gradation types, and the user can select according to their needs.



❖Title format for the chart

You first selects the title area of the chart and then opens Format in the right panel to set the format information of the title, as shown in the following figure: The user can set according to the requirements.

As shown in the figure below, set format for the title.





❖Axis label area format

You first selects the label area of the axis and then opens Format in the right panel to set the axis label format information, as shown in the following figure, and you can set it according to the requirements.

As shown in the figure below, set format for the axis labels.



❖Axis format

You first selects the Axis Line of the axis and then opens Format in the right panel to set the axis label format information, as shown in the following figure,and you can set it according to the requirements.



As shown in the figure below, you can set the color of the axis.



❖Plot Area format

First you should select the Plot Area and then open Format in the right panel to add a border to the chart area and set the background color and alpha as shown in the following figure:

You can set according to the needs.

You can add a background color to the Plot Area and add three border lines to the left , right, bottom, as shown in the following figure:

The Plot Area format of the map chart area is the format corresponding to each area and the area interval line of the map. After the user adds the background color and the border line to the map area of the map, it will be shown as the following figure :



❖Mark Format

When marking an unbound color, the user selects the mark and then opens Format in the right panel to set the format for the mark, as shown in the following figure:

Users can set according to the needs.

There are four types of background: single color, gradient, picture, and pattern. To set the background to be single color, picture, or pattern, please refer to the introduction of "Aesthetic-> Marker Color " and" Aesthetic->Marker Texture ".



Here are the details of the pattern. After selecting the pattern, the interface is as follows:

[Background Color] Sets the background color of the marker.

[pattern color] The color of the mark pattern.

The chart after setting has been displayed as follows (pattern color FFFF1C, shape first line second):

For Point, Stacked Point, Map, in addition to the above style, the user can also set the border

[Line Color] Set the color of the border of the point.

[Line Style] Set the style of the border of the point.

The chart after it has been set is displayed as follows (Line color FF2219, line style 2px line):



❖Label area format

Display the label on the chart, then open Format in the right panel to set the label format information:



Set the format, and the chart shows as follows:



❖Title area format of the legend

The user first selects the title area of the legend and then opens Format in the right panel to set the format information of the legend title, as shown in the following figure. The user can set according to the requirement.

The way to set the format of the legend title is  shown in the figure below.



❖Legend item format

The user first selects the item area of the legend, and then opens Format in the right panel to set the format information of the legend label, as shown in the following figure. The user can set according to the requirement.

The way to set the format of the legend item is  shown in the figure below.
